描述

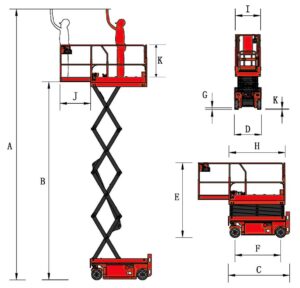

| Dimensions | ||||
| Max Working Height | [A] | 15.80 m | ||
| Max Platform Height | [B] | 13.80 m | ||
| Platform Size | [HxIxK] | 2.64×1.13×1.10 m | ||
| Overall Length | [C] | 2.84 m | ||
| Overall Width | [D] | 1.40 m | ||
| Overall Height(unfolded) | [E] | 2.60 m | ||
| Overall Height(folded) | 2.08 m | |||
| Slide-out Extension Deck | [J] | 0.9 m | ||
| Wheel Base | [F] | 2.26 m | ||
| Ground Clearance | [G] | 0.1/0.02 m | ||
| Performance | ||||
| Lift Capacity | 227 kg | |||
| Deck Extended Lift Capacity | 113 kg | |||
| Turning Radius(Inside/outside) | 0/2.7 m | |||
| Lifting/Driving Motor | 24 V/ 4.5 kw | |||
| Lifting Speed | 3-5 m/min | |||
| Drive Speed-stowed | 3.5 km/h | |||
| Drive Speed-raised | 0.8 km/h | |||
| Gradeability | 25% | |||
| The Max. Working Slope | 1.5°/ 3° | |||
| Tyre | Φ381x 127 mm | |||
| Power | ||||
| Power Source(batteries) | 4x 6 V/ 200 ah | |||
| Lithium Battery (optional) | 24 V/ 230 ah | |||
| Integrated Charger | 24 V/ 30 A | |||
| Weight | ||||
| Total Weight | 3,390 kg | |||
Configuration:
| Automatic braking system | Charging protection system |
| Emergency descent system | Remote car lock |
| Automatic pothole protection | GPS positioning |
| Emergency stop button | Buzzer |
| Self-locking door | Standard transport foklift hole |
| Full range of walking | Foldable fence |
| Oil pipe explosion-proof system | Horn |
| Fault diagnosis system | Work schedule |
| Non-marking tire | Anti-tampering |
| Tilt protection system | Safe maintenance support rod |
| 4×2 drive | Continuously variable speed |
| Extended platform |

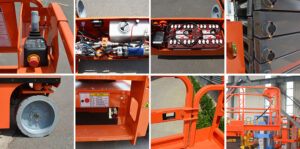

Product details:
