Description

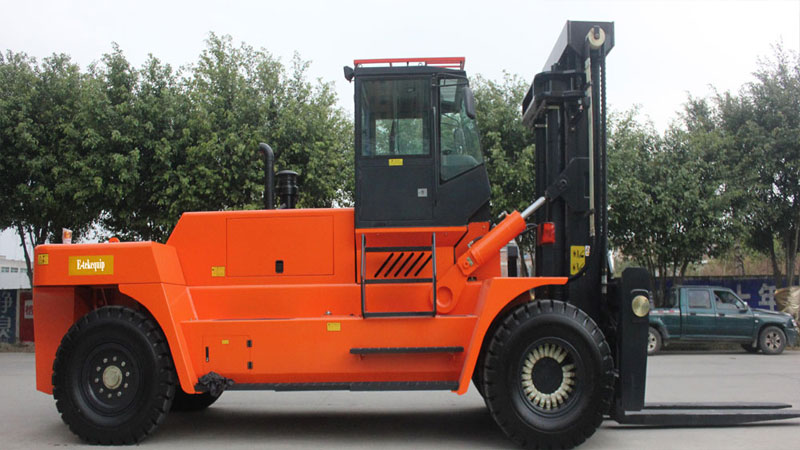

| Features | Unit | EHF-350 | EHF-360 |
| Rated Load | t | 35 | 36 |
| Load Center | mm | 1250 | 1250 |
| Wheelbase | mm | 4800 | 4800 |
| Weight | |||
| Kg | 43,000 | 43,500 | |
| Chassis | |||
| Front Tyre Number and Size | Pcs | 4x 16.00-25-32PR | 4x 16.00-25-32PR |
| Rear Tyre Number and Size | Pcs | 2x 16.00-25-32PR | 2x 16.00-25-32PR |
| Front Wheel Track | mm | 2420 | 2420 |
| Rear Wheel Track | mm | 2450 | 2450 |
| Diemension | |||
| Mast Tilt Angle(forward / backwards) | ° | 6/12 | 6/12 |
| Mast Height(fork falling) | mm | 4010 | 4010 |
| Mast Lifting Height | mm | 3500 | 3500 |
| Max. Lifting Height | mm | 5760 | 5760 |
| Height of Overhead Guard(Height of Cab) | mm | 3860 | 3860 |
| Overall Length(with fork) | mm | 9700 | 9700 |
| Overall Width | mm | 3320 | 3320 |
| Length to face of forks | mm | 7150 | 7150 |
| Fork Dimensions | mm | 2440x340x125 | 2440x340x125 |
| Fork Carriage Width | mm | 3100 | 3100 |
| Min. Mast Ground Clearance(full load) | mm | 400 | 400 |
| Min. Ground Clearance of Wheelbase Center | mm | 460 | 460 |
| Min. Turning Radius | mm | 7260 | 7260 |
| Travel Speed(full load/non-load) | Km/h | 25/28 | 25/28 |
| Performance | |||
| Max. Lifting Speed(full load/non-load) | m/s | 0.26/0.28 | 0.26/0.28 |
| Max. Lowering Speed(full load/non-load) | m/s | 0.25/0.18 | 0.25/0.18 |
| Traction | kN | 220 | 220 |
| Gradeablity(full load/non-load) | % | 20/20 | 20/20 |
| Driving Brake | － | Hydraulic Clamp Disc | |
| Engine | |||
| Option A | － | Weichai WP10G240E341 | Weichai WP10G240E341 |
| Option B | － | Commins 6CTA8.3-C260 | Commins 6CTA8.3-C260 |
| Option C | － | Commins QSL9.3-C240 | Commins QSL9.3-C240 |
| Others | |||
| Transmission Gears(Front/rear) | － | 2/1 | 2/1 |
| Attachments Working Pressure | MPa | 18 | 18 |
| Note: The above dates are subject to change without prior notice. | |||
