描述
| Dimensions | ||||
| Max Working Height | [A] | 16.00 m | ||
| Max Platform Height | [B] | 14.00 m | ||
| Platform Size | [HxF] | 2.64×1.12 m | ||
| Overall Length | [C] | 3.03 m | ||
| Overall Width | [D] | 1.82 m | ||
| Overall Height(unfolded) | 2.82 m | |||
| Overall Height(folded) | [E] | 2.29 m | ||
| Slide-out Extension Deck | [G] | 0.90 m | ||
| Performance | ||||
| Lift Capacity | 320 kg | |||
| Deck Extended Lift Capacity | 113 kg | |||
| Turning Radius | 0 m | |||
| Lifting/Driving Motor | 48 V/ 4.5 kw | |||
| Lifting Speed | 84/38sec | |||
| Drive Speed-stowed | 1.8 km/h | |||
| Gradeability | 30% | |||
| The Max. Working Slope | 1.5°/ 3° | |||
| Power | ||||
| Power Source(batteries) | 8x 12 V/ 100 ah | |||
| Integrated Charger | 48 V/ 35 A | |||
| Weight | ||||
| Total Weight | 4,000 kg | |||
Configuration:
| Proportional control | Extended platform |
| Automatic braking system | Charging protection system |
| Emergency descent system | Buzzer |
| Strobe lights | Standard transport foklift hole |
| Emergency stop button | Foldable fence |
| Self-locking door | Horn |
| Oil pipe explosion-proof system | Safe maintenance support rod |
| Fault diagnosis system | Continuously variable speed |
| Tilt protection system |

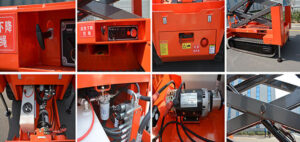

Product details:
